Thermobreak Solar

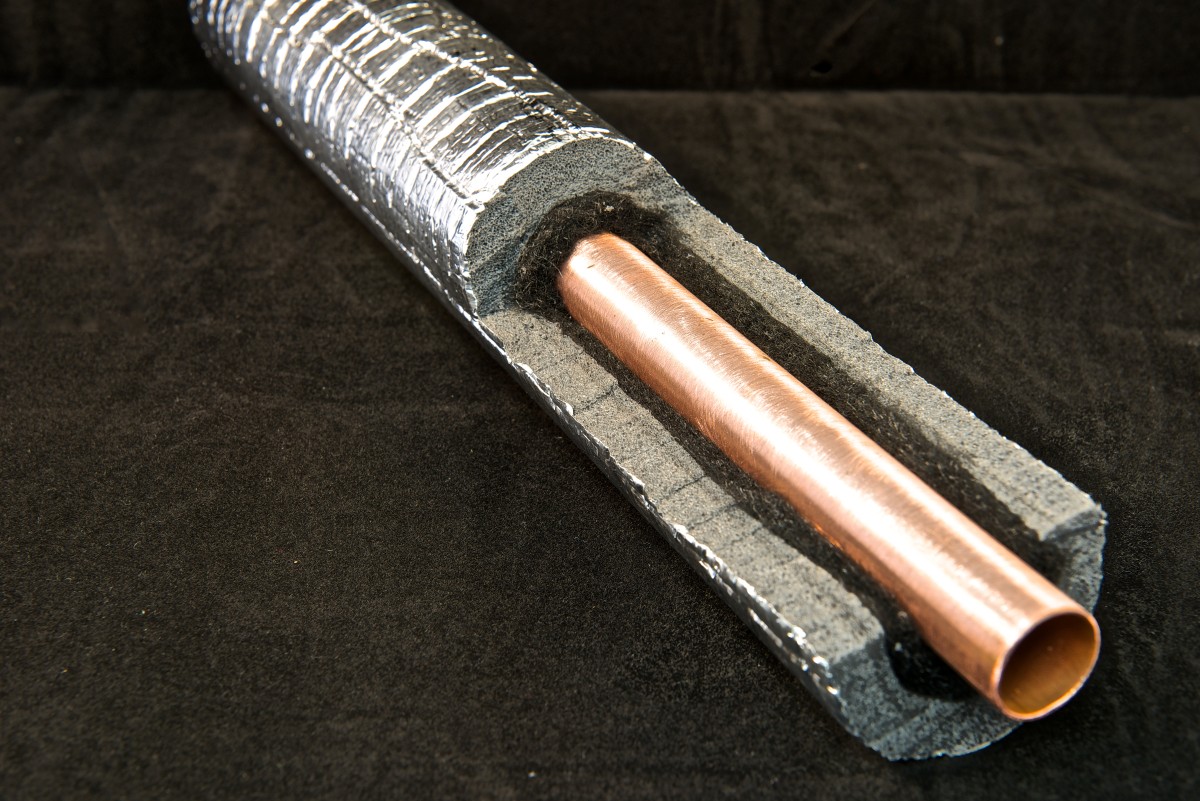

Thermobreak Solar is an Electron beam polyolefin foam faced with factory applied reinforced foil. Boasting its innovative design, Thermobreak Solar contains a 6mm highly heat resistant internal layer, which acts as a protective barrier between the pipe and the insulation. Thermobreak Solar has an operating temperature of 160˚C with an intermittent temperature of 190˚C. Thermobreak Solar is set apart from other similar products currently available on the market.

Description

Thermobreak Solar is an Electron beam polyolefin foam faced with factory applied reinforced foil. Boasting its innovative design, Thermobreak Solar contains a 6mm highly heat resistant internal layer, which acts as a protective barrier between the pipe and the insulation. Thermobreak Solar has an operating temperature of 160˚C with an intermittent temperature of 190˚C. Thermobreak Solar is set apart from other similar products currently available on the market.

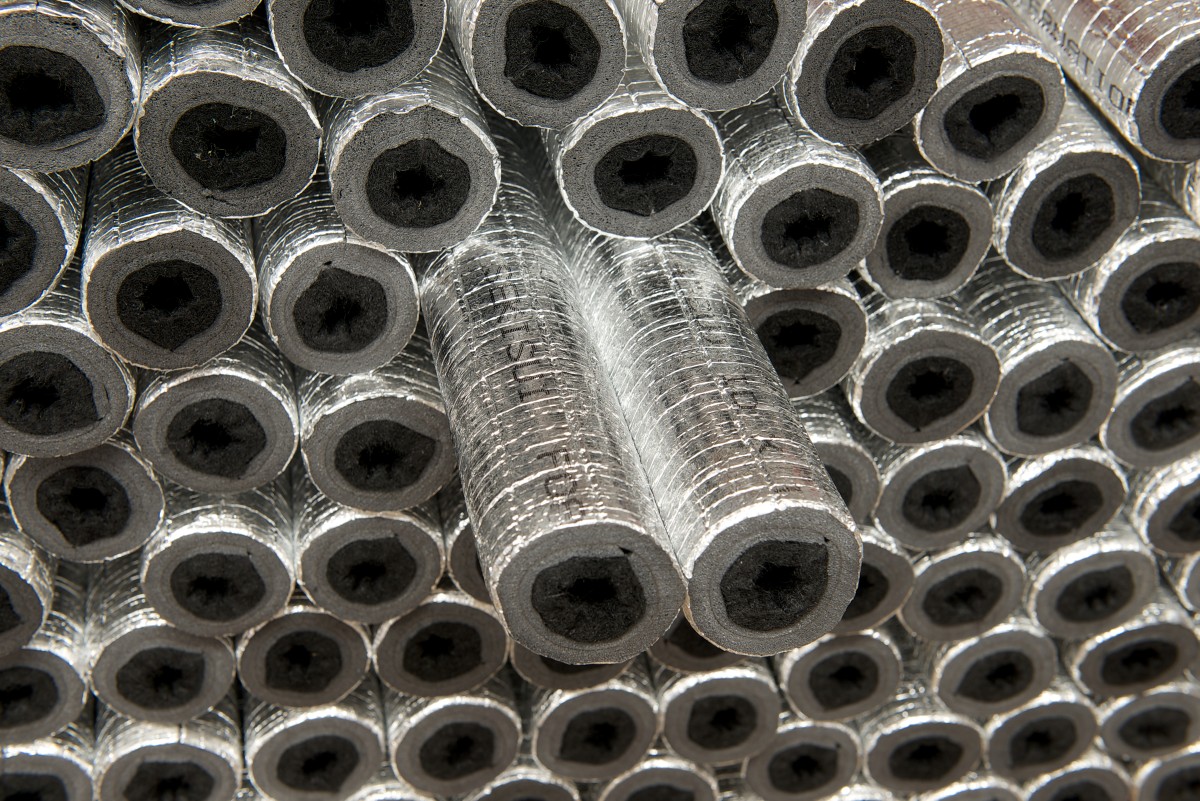

Thermobreak Solar is available in 2 metre lengths, non slit for easy slide on application, but can be slit easily with a sharp knife when retro-fitting. Like Thermobreak Tube the 2mtr length size benefits the end user, allowing for less joints, saving on labour costs and consumables. Thermobreak Solar has a density of 25kg/m3 (foam only), which gives it greater flexibility, whilst still being tough and durable. The lower density also allows Thermobreak Solar to have one of the best thermal insulating properties available on the market.

Features & Benefits

Features & Benefits

  • Closed Cell (foam only) – Will not absorb water should condensation occur.
  • High Temperature – Highly heat resistant internal layer.
  • Green Star – Green Star Compliant with VOC’s and Global warming potential & Ozone depleting potential.
  • Compliance – Complies with the Building Code of Australia requirements under AS/NZS 4859.1, AS/NZS 3500.4 and AS/NZS 1530.3.
  • Fire Rating – 4 Zero Fire Rating, complies with standard AS1530.3(1999)
  • UV Resistant – Superior UV resistance compared to PVC nitrile elastomeric foams.
  • Anti Microbial.
  • Solar Rated – Highly heat resistant internal layer.
  • Temperature Range – minus 40˚C to 160˚C – intermittent 190˚C.
  • Lengths & Sizes – Available in 2 metre lengths. Copper Pipe Sizes – 13mm, 19mm, 25mm & 32mm. Other sizes and thicknesses made to order.
  • Environmentally Friendly – Contains up to 50% recycled content.
  • Wall Thickness – Available in 15mm wall & 25mm wall.
  • Developed & Manufactured in Australia.

Technical Information

Thermobreak Solar Brochure

Thermobreak Solar Technical Data Sheet

Thermobreak Solar Material Safety Data Sheet
